Description:
The raw materials to be treated should disribute on the
conveyer beIt through suitable mechanism such as star distributor,
swing belt. crusher or granulator, The conveyer passes through the
channel consisting of one or several heating unit. Each heating unit
is equipped with air heat and circle syStem, Each channel has one
or several damp discharge systems, When the conveyer passes
through it, hot air wiII pass through the raw materiaI from up to low
or from low to up. ln this way the raw rnateriaIs can be dried evenly
Application:

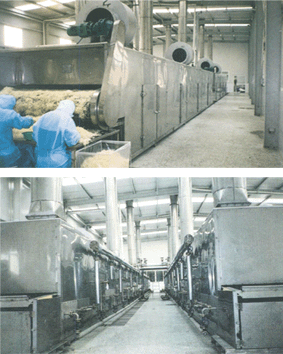

The belt drier is ordinary continuous drying equipment. lt is
widely used for chemical induStry, foodstuff industry, pharmaceutical
industry construction materaials industry eIectronics industry and
so on. Especially it is suitable for drying raw materials that are good
in breathability and have the shape of pieces or strip of granule. lt is
also possible to dry the pasted raw materials such as filter cake
after shaped through granuIator or extruder
Typical Products:
Dehydrated vegetable, granule feed. monosodium glutamate.
check extraCtion, organic pigment, synthofic trbber. propylene fiber,
medicine, medical materials, small wooden products. plastic
products, aging or solidifying for eIectronic elements.
Technical Parameters:
|
Type |
DW-1.2-8A |
DW-1.2-10A |
DW-1.6-8A |
DW-1.6-10A |
DW-2.0-8A |
DW-2.0-10A |
|
Set |
4 |
5 |
4 |
5 |
4 |
5 |
|
Length(m) |
8 |
10 |
8 |
10 |
8 |
10 |
|
Thichness of material(mm) |
≤60 |
|
Using temperature(℃) |
50-140
|
|
Steam pressure(MPa) |
0.2-0.8
|
|
Steam consumption(kg/h) |
120-300 |
150-375 |
150-375 |
170-470 |
180 |
500 |
|
Drying time(h) |
0.2-1.2 |
0.25-1.5 |
0.2-1.2 |
0.25-1.5 |
0.2-1.2 |
0.25-1.5 |
|
Drying strength(kg water/h) |
6-30
|
|
Power of engine(kw) |
11.4 |
13.6 |
11.4 |
13.6 |
12.5 |
14.7 |
|
Dim(m) |
A |
1.2 |
1.2 |
1.6 |
1.6 |
2.0 |
2.0 |
|
A1 |
2.28 |
2.28 |
2.68 |
2.68 |
3.2 |
3.2 |
|
B |
8.0 |
10.0 |
8.0 |
10.0 |
8.0 |
10.0 |
|
B1 |
9.5 |
11.5 |
9.5 |
11.5 |
9.5 |
11.5 |
|
C |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
|
type |
DW-1.2-8B |
DW-1.2-10B |
DW-1.6-8B |
DW-1.6-10B |
DW-2.0-8B |
DW-2.0-10B |
|
|
8 |
10 |
8 |
10 |
8 |
10 |
|
Length(m) |
24 |
30 |
24 |
30 |
24 |
30 |
|
Thickness of material(mm) |
≤60 |
|
Using temperature(°C) |
50-140
|
|
Steam pressure(MPa) |
0.2-0.8
|
|
(Steam consumptionkg/h) |
240-550 |
300-750 |
300-750 |
340-950 |
350-1000 |
400-1200 |
|
Drying time(h) |
0.2-1.2 |
0.25-1.5 |
0.2-1.2 |
0.25-1.5 |
0.2-1.2 |
0.25-1.5 |
|
Drying strength(kg water/h) |
6-30
|
|
Power of engine(kw) |
21.7 |
26.1 |
21.7 |
27.2 |
29.2 |
35.2 |
|
Dim(m) |
A |
1.2 |
1.2 |
1.6 |
1.6 |
2.0 |
2.0 |
|
A1 |
2.1 |
2.1 |
2.8 |
2.8 |
3.2 |
3.2 |
|
B |
8.0 |
10.0 |
8.0 |
10.0 |
10.0 |
10.0 |
|
B1 |
9.5 |
11.5 |
9.5 |
11.5 |
9.5 |
11.5 |
|
C |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
2.5 |
|
Type |
DW-1.2-8B |
DW-1.2-10B |
DW-1.6-8B |
DW-1.6-10B |
DW-2.0-8B |
DW-2.0-10B |
|
|
5 |
6 |
5 |
6 |
5 |
6 |
|
Length(m) |
8 |
10 |
8 |
10 |
8 |
10 |
|
Thickness of material(mm) |
≤60 |
|
Using temperature(℃) |
50-140
|
|
Steam pressure(MPa) |
0.2-0.8
|
|
Steam consumption(kg/h) |
120-300 |
150-375 |
150-375 |
170-470 |
180-500 |
225-600 |
|
Drying time(h) |
0.2-1.2 |
0.25-1.5 |
0.2-1.2 |
0.25-1.5 |
0.2-1.2 |
0.25-1.5 |
|
Drying strength(kg water/h) |
6-30
|
|
Power of engine(kw) |
13.6 |
15.8 |
13.6 |
15.8 |
14.7 |
16.9 |
|
Dim(m) |
A |
1.2 |
1.2 |
1.6 |
1.6 |
2.0 |
2.0 |
|
A1 |
1.95 |
1.95 |
2.35 |
2.35 |
2.75 |
2.75 |
|
B |
8.0 |
10.0 |
8.0 |
10.0 |
10.0 |
10.0 |
|
B1 |
12.5 |
14.5 |
12.5 |
14.5 |
12.5 |
14.5 |
|
C |
3.5 |
3.5 |
3.5 |
3.5 |
3.6 |
3.6 |
|
