Uses:

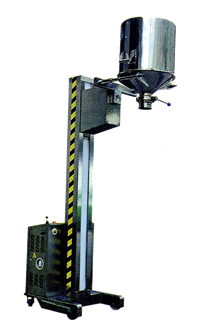

TSG series fixed elevating feedeF, TSY series mobile elevating feeder and TSS series mobile expansion elevating feeder are mainIy used for moving, elevating and feeding of solid material in pharmaceutical enterprises. They are also widely used in chemical, light indusiry. food and oiher indusiries.
Characteristics:
1. The equipment is of a compact and new type, easy to operate and clean. the outlet butterfly-valve is easy to removed to clean, and conforms to "GMP'of pharmaceutical industry
2. The equipment is with light weight, big Ioad capacity and good operation stability
3. The equipment uses electrical-hydraulic integrated control technology. Its per formance is stable and reliable.
4. lt can be used in muitiple purposes, it saves time and force. it reduces pollution to the envi ronment.
5. There is low requirement on maintenance and low maintenance cost.
Technical parameters :
|
Model |
TSG-50 |
TSG-100 |
TSG-150 |
TSG-200 |
TSY-50 |
TSY-100 |
TSY-150 |
TSY200 |
TSS-50 |
TSS-100 |
TSS-150 |
TSS-200 |
|
Standard material elevating weight(kg) |
50 |
100 |
150 |
200 |
50 |
100 |
150 |
200 |
50 |
100 |
150 |
200 |
|
Elevating speed(cm/s) |
12 |
12 |
7-8 |
7-8 |
12 |
12 |
7-8 |
7-8 |
12 |
12 |
7-8 |
7-8 |
|
Hopper turning speed(r/min) |
<3 |
|
Column rotating angle(°) |
>180 |
|
Maximum elevating height(mm) |
2200 |
1800 |
2500 |
|
Height of the highest point(mm) |
3100 |
3200 |
3300 |
3400 |
2600 |
2700 |
2900 |
3000 |
3300 |
3500 |
3600 |
3700 |
|
Motor power(kw) |
0.75 |
1.5 |
1.5 |
2.2 |
0.75 |
1.5 |
1.5 |
2.2 |
0.75 |
1.5 |
1.5 |
2.2 |
|
Dimension(mm) |
1500×
600×2600 |
1600×
700×2800 |
1700×
700×2700 |
1800×
800×2800 |
1400×
650×2000 |
1700×
750×2000 |
1700×
750×2000 |
1800×
800×2000 |
1500×
600×2000 |
1700×
750×2000 |
1800×
750×2000 |
1900×
800×2000 |
|
Weight(kg) |
270 |
340 |
450 |
600 |
310 |
420 |
510 |
680 |
370 |
470 |
620 |
725 | |
